What we can offer:

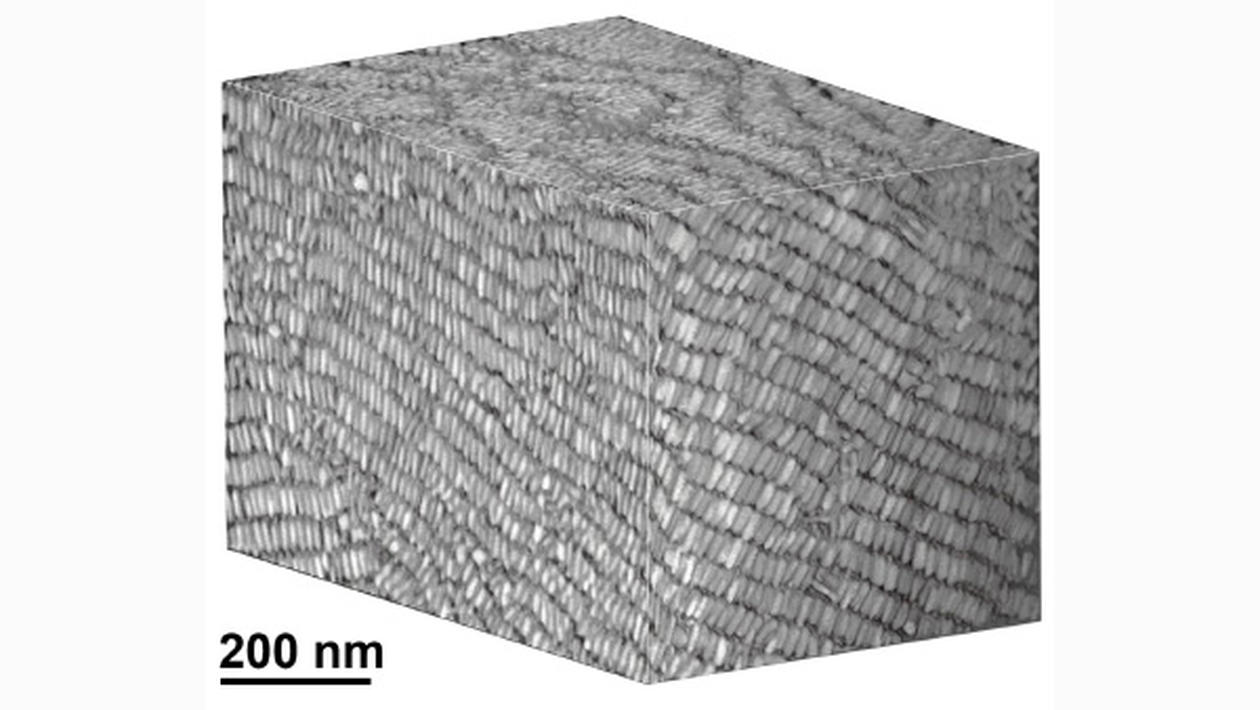

  • 3D characterization of materials structure at different scales by means of FIB/SEM or TEM/STEM electron tomography.

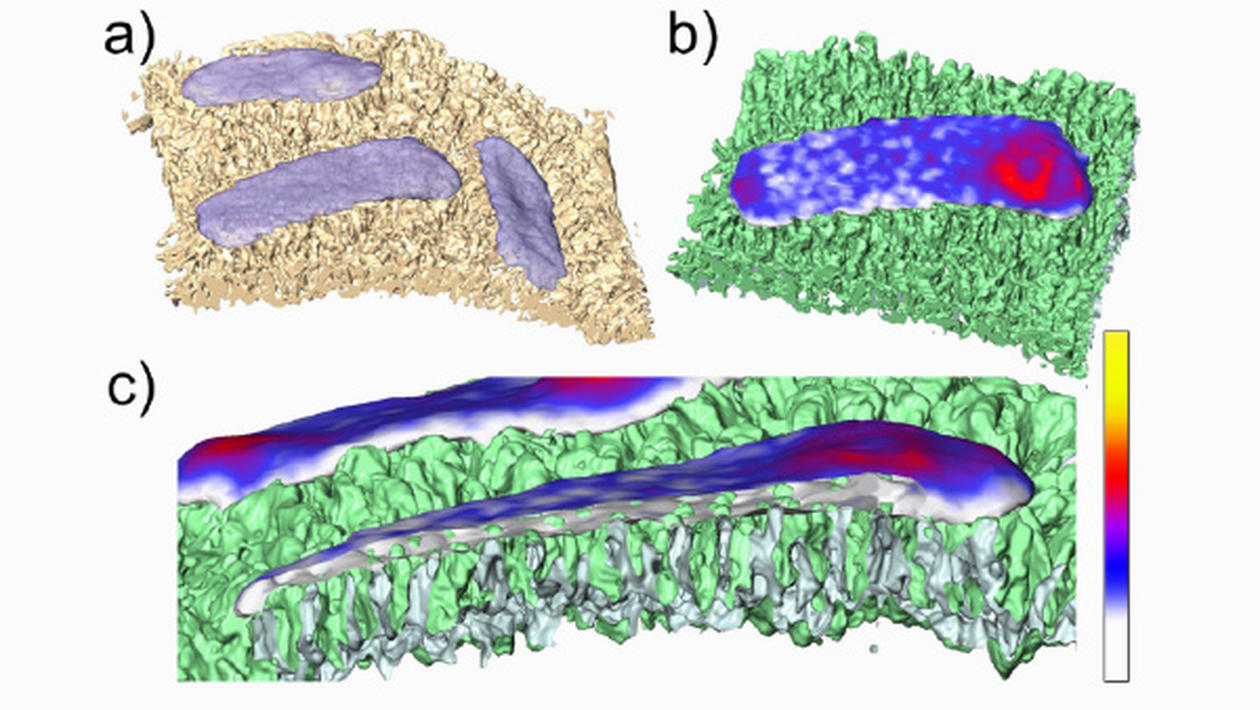

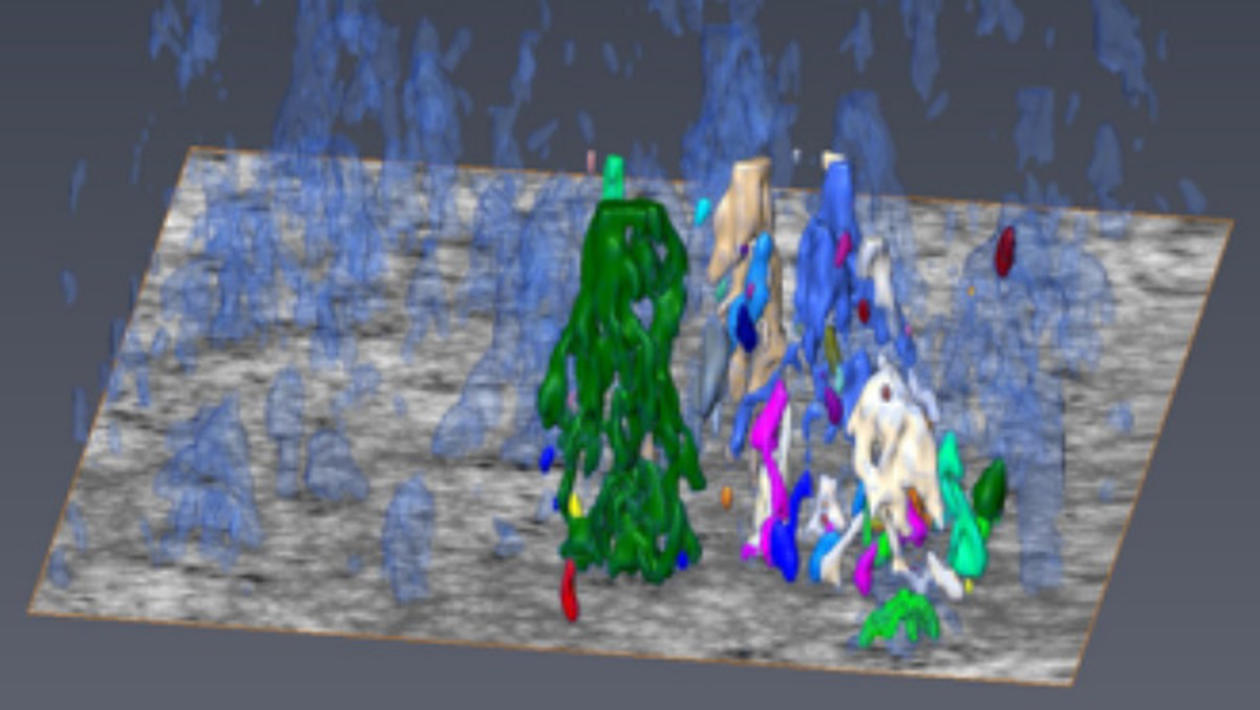

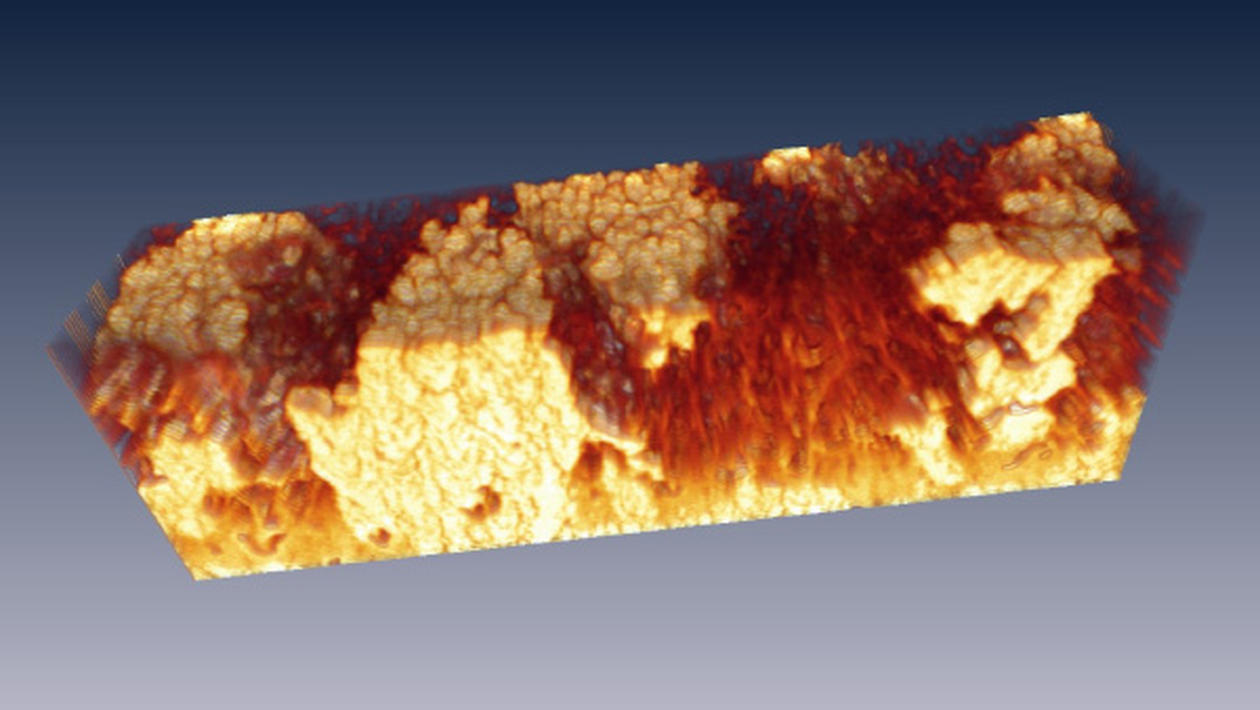

  • Reconstruction and analysis of sample structure in three dimensions, image processing, segmentation and rendering of 3D models of the specimens structure.

Possibility to:

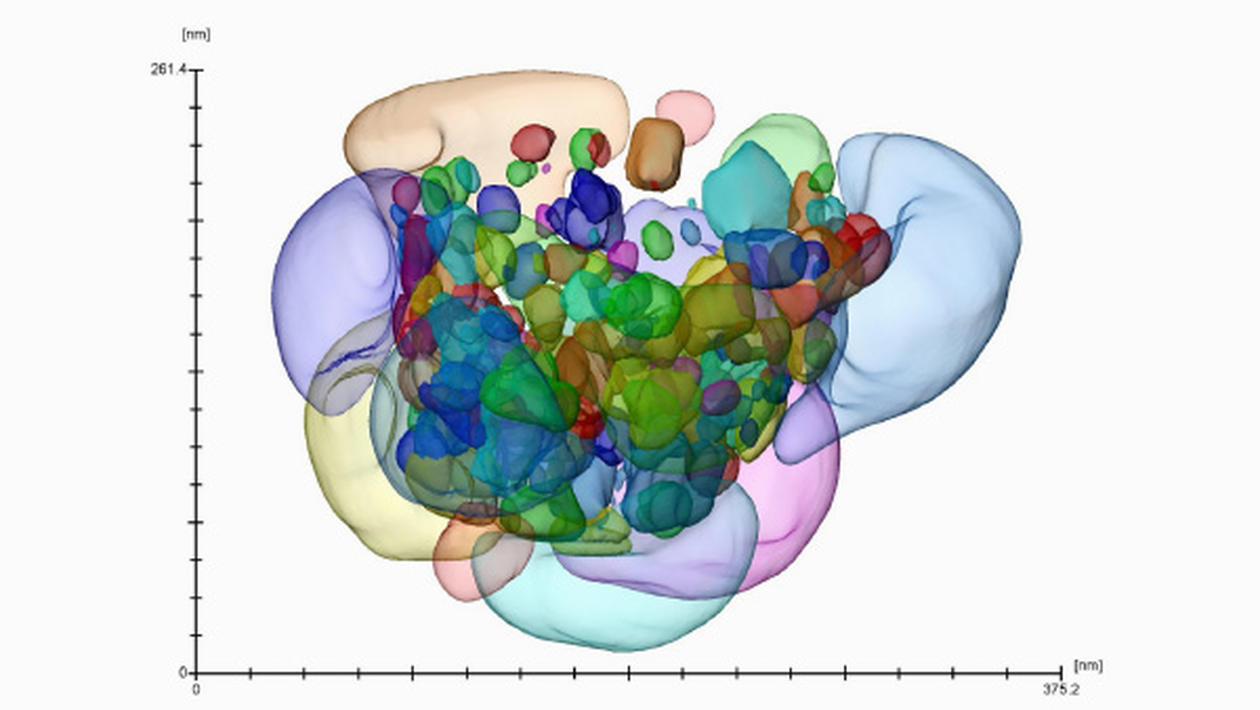

  • Defects or different phases distribution in the volume of the sample, porosity in 3D, pores-shape evolution through the volume, qualitative and quantitative analysis of nanoparticles shape, orientation.

  • Statistical analysis of phases or nanoparticles volumes.

  • Preferable orientation, homogeneity of distribution.

  • Films adhesion quality.

  • 3D characterization of interfaces.

  • Analysis of structural changes in the material volume after surface treatment…

Interesting for:

Materials science, life sciences, microelectronics and semiconductors, automotive, laboratory test facilities, microscopy laboratories, machine-tool manufacturers, iron and steel industry, energy storage and solar-energy materials industry, objects of cultural heritage examination, energy and petrochemical companies.
